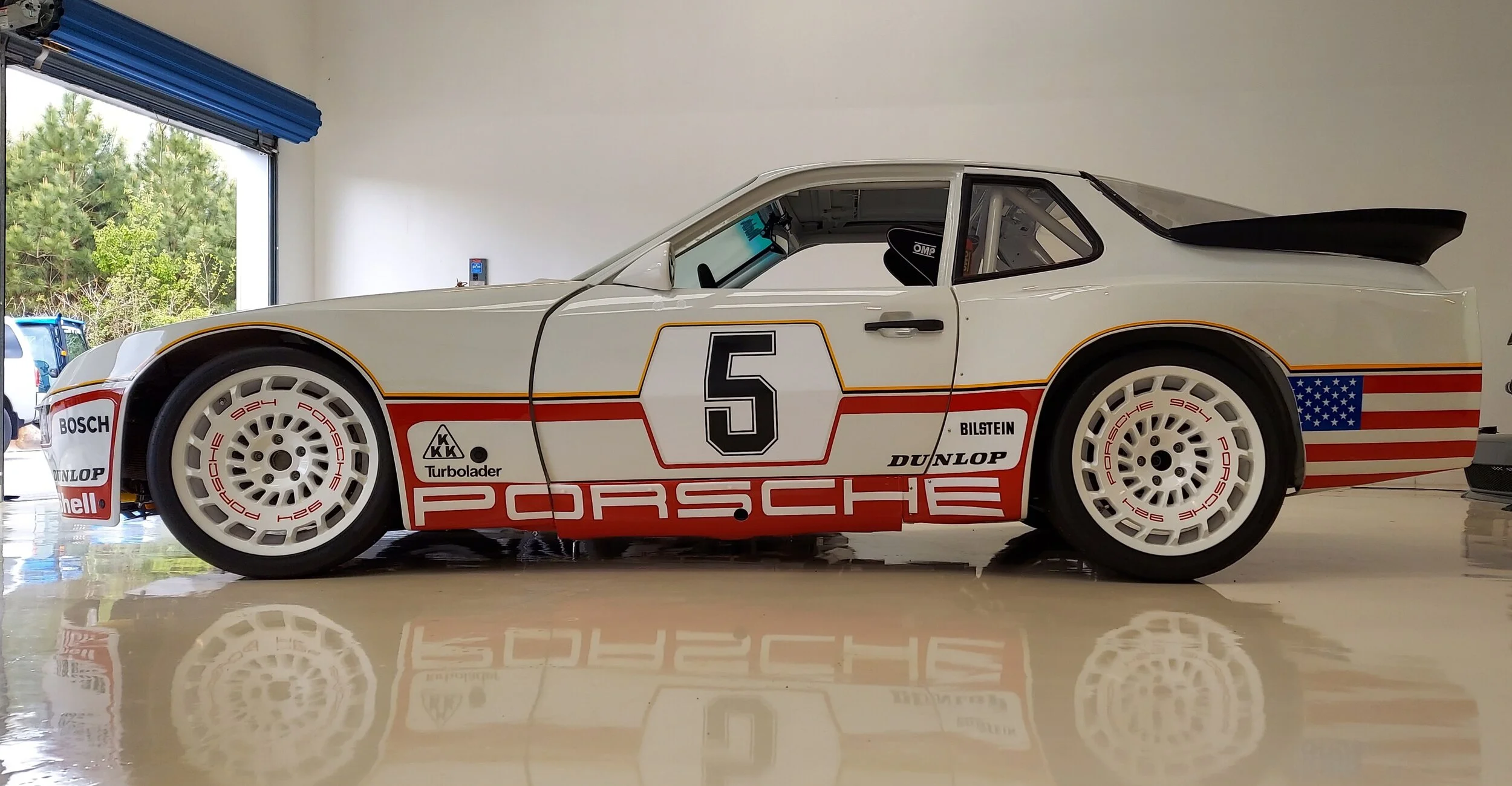

Porsche 924 GTP “ Spirit of America” Tribute - 1.8T Powered
#16 Build from the “Heritage Tribute” Collection.
Porsche 924 GTP wide body powered by our 1.8T engine conversion. 385 HP, 350 TQ with 8,500 RPM rev. limit & weighing in at 2,025 lbs.
Porsche 924 GTP "Spirit of America" Tribute walk around video
See ORIGINAL Build Specs below…
Please contact us at (770) 886-0686 if we may assist with any questions on your next project.
Thank you.
ORIGINAL BUILD SPECS BELOW
BODY
1986 Porsche 944 Chassis

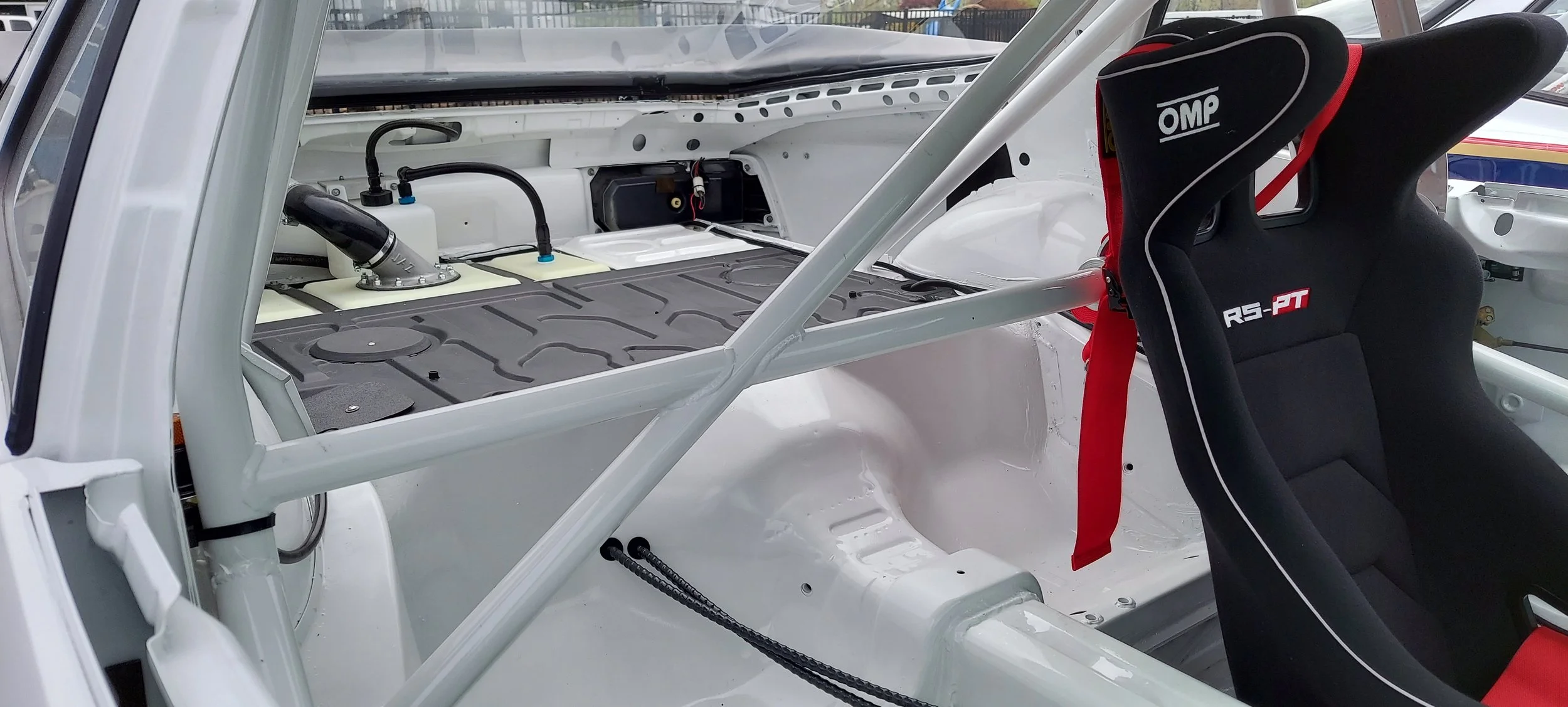

Media Stripped & seam welded with 6 point roll cage
924 GTP One piece nose
Push button quick release latches
Removable GTP composite quarter flares
GTP rear spoiler with extensions
Polycarbonate rear windshield & quarter windows
2,025 lbs.
ENGINE & DRIVE TRAIN
Audi 1.8T 20V Turbo engine with IE forged connecting rods
ARP Main & head studs
High Performance Race Cams with billet adjustable cam gear
3” inlet / outlet Air to Air intercooler
385 HP & 350 ft. lbs. Torque, pulling to an 8,500 rev limiter
Porsche 986 gearbox with rear-mounted alternator
997 Shifter box with Motor Werks Racing custom cables
Custom Motor Werks Racing axles
SUSPENSION & BRAKES
Moton Suspension remote reservoir shocks
Custom MWR Delrin bushings
Box welded shock towers with billet camber plates
MWR 2-piece adjustable control arms with serviceable bushings & ball joints
18 x 9 255/35 R18 Front Hoosier R7
18 x 10 295/30 R18 Rear Hoosier R7
944 Turbo 4 piston brake calipers
Cross drilled rotors
Non-assist manual brake master
